Flexible UN Approved Combination Packaging for Dangerous Goods

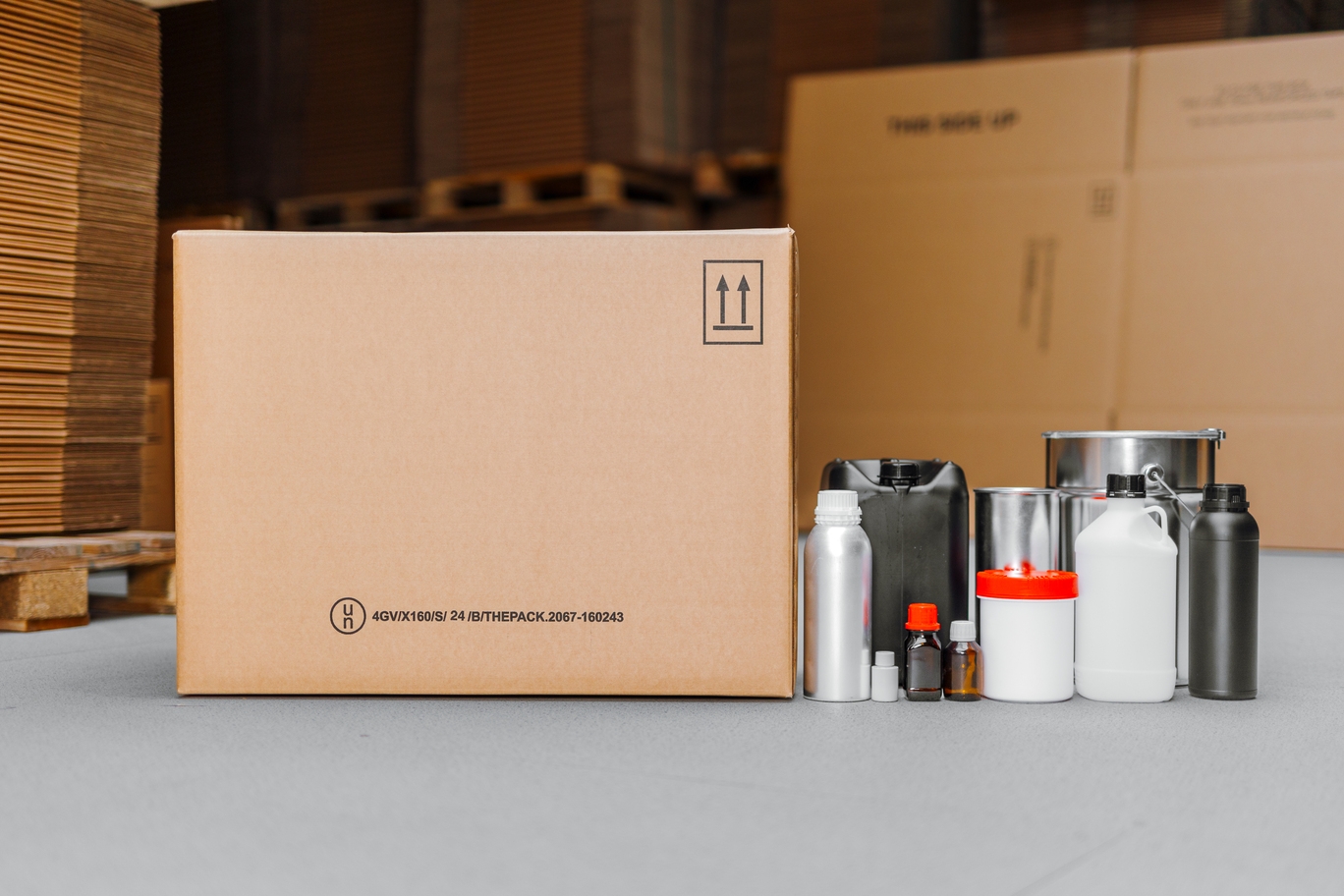

4GV fibreboard boxes are UN approved combination packaging designed for the safe transport of dangerous goods with multiple inner packaging configurations under a single certification.
They are widely used across pharmaceutical, chemical, laboratory, and logistics industries where flexibility, compliance, and efficiency are critical.
Speak to an Expert4GV packaging allows different inner packaging types including bottles, jars, jerrycans and bags to be shipped together within one certified outer box.
Below is our standard range of 4GV UN approved fibreboard boxes available from stock. Additional sizes and configurations are available depending on your requirements.
| Product Code | Inner Dimensions (mm) | Max Gross Weight | Boxes per Pallet |
|---|---|---|---|
| 4GV3THP | 115 x 115 x 270 | 2.1 kg | 1800 |
| 4GV1THP | 155 x 155 x 265 | 3.9 kg | 1120 |
| 4GV2THP | 264 x 134 x 308 | 3.9 kg | 480 |
| 4GV5 | 272 x 218 x 298 | 5 kg | 280 |
| 4GV6 | 172 x 152 x 225 | 5.8 kg | 900 |
| 4GV6.3THP | 150 x 150 x 273 | 6.3 kg | 720 |
| 4GV7 | 316 x 248 x 310 | 7.9 kg | 240 |
| 4GV12.2 | 193 x 194 x 301 | 12.2 kg | 360 |
| 4GV13T | 272 x 197 x 295 | 13.2 kg | 300 |
| 4GV17.9 | 270 x 250 x 350 | 17.9 kg | 300 |
| 4GV20.3T | 390 x 296 x 327 | 20.3 kg | 150 |
| 4GV20.6 | 310 x 279 x 272 | 20.6 kg | 300 |
| 4GV22 | 592 x 389 x 304 | 22 kg | 70 |
| 4G BOX BATTERY | 450 x 210 x 140 | 23.8 kg | 120 |
| 4GV23T | 426 x 313 x 300 | 23.2 kg | 150 |
| 4GV30THP | 568 x 373 x 430 | 30 kg | 75 |
| 4GV31.2 | 400 x 300 x 300 | 31.2 kg | 150 |
| 4GV34 | 604 x 403 x 510 | 34 kg | 70 |
| 4GV34.4 | 510 x 370 x 270 | 34.4 kg | 150 |
| 4GV35.6T | 386 x 395 x 425 | 35.6 kg | 150 |
| 4GV49.8 | 400 x 400 x 400 | 49.8 kg | 75 |
| 4GV55 | 562 x 367 x 452 | 55 kg | 70 |
| 4GV62.5 | 550 x 401 x 400 | 62.5 kg | 35 |
| 4GV89.5 | 702 x 402 x 504 | 89.5 kg | 35 |
| 4GV160 | 770 x 570 x 550 | 160 kg | 70 |
| 4GV245 | 1175 x 770 x 740 | 245 kg | 70 |
| 4GV259.6THP | 1166 x 771 x 604 | 259.6 kg | 70 |
| 4GV517 | 1170 x 765 x 800 | 517 kg | 70 |
4GV packaging is only compliant when used as a complete tested system including outer box, inner packaging, absorbent materials and closure method. Incorrect configuration can void certification and lead to rejected shipments.
These are essential components of a compliant packaging system.
